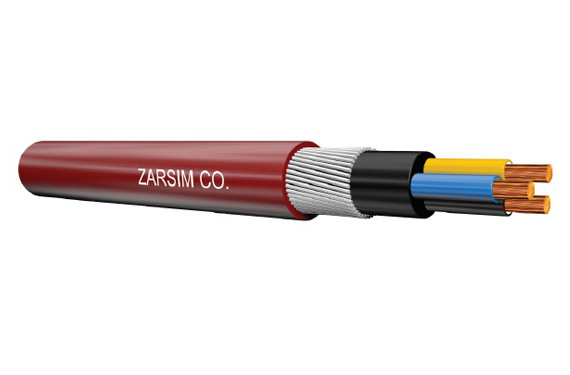

کابل نیمه افشان با زره مفتولی NYRY) ۶۰۰/۱۰۰۰V)
Application
For cables can be used indoor or outdoor in cable ducts, cable trays, conduits or underground locations under mechanical stress at power and switching stations, local distribution systems, industrial plants, and commercial buildings
:Standard
IEC ۶۰۵۰۲-۱
VDE ۰۲۷۱
ISIRI ۳۵۶۹-۱
:Construction
.Plain annealed copper class ۱&۲
.PVC insulation, type A
.Cores twisted together, if necessary in concentric layers
.Extruded PVC compatible with the operating temperature of the conductor
.Aluminum wire armor for single core and galvanized steel wire armor for multicore cable
.PVC sheath, type ST۱
:General Specification
Rated voltage: ۰.۶/۱kV
Working temperature: Max ۷۰°C
Code designation: NYRY
